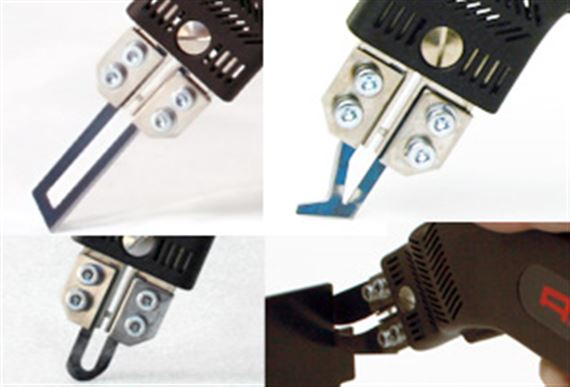

Our Thermocutter Blades
Choose the Hot Knife blade to suit the purpose. These Hot Knife blades are designed so that heat is concentrated along the cutting edge in order to achieve the optimum cutting temperature. Prior to insertion in the material to be cut, the temperature of the blades will be between 100°C and 800°C, depending on the type of blade and the thermocutter used. The temperature to the blade cools down as it enters the material. The temperature depends on the thermal properties and heat conductivity of the material being cut and determines the cutting speed. The cutting edge is evenly heated because of the design of the blade’s cutting flanges.
Blades with “SS” as part of their Model Number represent Stainless Steel Blades.
Note that some blades are only for use with the Zetz-24 (aka ZTS 24) and 25 (aka ZTS 25) Hot Knife Thermocutters.
Model T3
These are the most commonly used blades.
| Blades | Thickness | Cutting Edge Length |
| T3-15 | 0.6 mm | 15 mm |
| T3-30 | 0.6 mm | 30 mm |
| T3-50 | 0.6 mm | 50 mm |
| T3-90 | 0.6 mm | 90 mm |
| T3-125 | 0.6 mm | 125 mm |
Model T2
Sharpened on two sides to prevent distortion, allows cutting in two directions. Ideal for cutting foam. T2-50 for trimming laminated solar panels.
| Blades | Thickness | Cutting Edge Length |
| T2-50 | 0.6 mm | 50 mm |
| T2-100 | 0.6 mm | 100 mm |
| T2-150 | 0.6 mm | 150 mm |
| T2-200 | 0.6 mm | 200 mm |

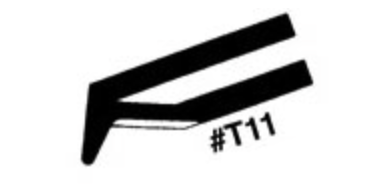

Model T11
With angled cutting edge and parrot’s beak to serve as guide hook.
| Blades | Thickness | Cutting Edge Length |
| T11-15 | 0.6 mm | 15 mm |
| T11-30 | 0.6 mm | 30 mm |
Model T015
We will work with you to create a personalised plan to help you achieve your financial goals.
| Blades | Thickness | Cutting Edge Length |
| T015-0-6 | 0.6 mm | 35 mm |
| T015-0-8 | 0.8 mm | 35 mm |
| T015-1-0 | 1.0 mm | 35 mm |
Models T01 and T02
With glide hooks that hook into the material and glides along cutting base.
T02 and T02S0 for trimming laminated solar panels. T02S0 is offset at 90° angle.
| Blades | Thickness | Cutting Edge Length |
| T01 | 0.6 mm | 6 mm |
| T02 | 0.8 mm | 12 mm |
| T02S0 | 1.0 mm | 12 mm |
Model T04
With short, obtuse angled cutting edges, both sides are ground.
| Blades | Thickness | Cutting Edge Length |
| T04 | 0.6 mm | 15 mm |
Model T05
With wide blade back and reinforced cutting flange. Stable cutting. The high temperature blade is designed for heat sealing the cutting edges.
For trimming laminated solar panels.
| Blades | Thickness | Cutting Edge Length |
| T05 | 0.6 mm | 35 mm |
Model T011
Standard blades, double edged, with concave cutting edges leading to a point— for cutting material at an oblique angle and at a high temperature. Can achieve a small radius on rounded cuts. Cuts staight into material without preparatory drilling.
De-burring blade for anti-static trimming of excess plastic from sprues without waste or tension cracks.
| Blades | Thickness | Cutting Edge Length |
| T011-0-6 | 0.6 mm | 10 mm |
| T011-0-8 | 0.8 mm | 10 mm |
Model T012
With long pointed blade flanges, ground both sides. For two-directional cuts. For cutting around templates. Also suitable for de-burring.
T012-1-0 for trimming laminated solar panels.
| Blades | Thickness | Cutting Edge Length |
| T012-0-6 | 0.6 mm | 35 mm |
| T012-0-8 | 0.8 mm | 35 mm |
| T012-1-0 | 1.0 mm | 35 mm |
Model DPM10
Used for sheet plastics, asphalt roofing paper, roll stock and any high-heat application— Not designed fo continuous use.
| Blades | Thickness | Cutting Edge Length |
| DPM10* | 2.0 mm | 15 mm |
| *For use with the Zetz-24/25 only. | ||
Model T06
With a rounded edge to glide along cutting surface Heat sealing the edges to prevent fraying of synthetic fibers and textiles.
| Blades | Thickness | Cutting Edge Length |
| T06 | 0.6 mm | 2 mm |
Model T150-2P
Cutting Sling consists of adjustable arms plus Blade No. T151 which can be reshaped once.
Applications: For rounded, angular, concave and other shaped cuts. Shaping interior spaces, cutting hollows into foam materials such as PE, PS, PU, etc..
| Cutting Sling | Thickness | Blade Length |
| Replacement Blade (T151) | .05 mm | 110 mm |
Model AZ106
Grooving (for use with Cutting Sling) for quick cutting of grooves and flutes in foam materials made of PE, PS, PU.
| Blades | Thickness | Cutting Edge Length |
| AZ106 | 16-22 mm | 16 mm |
Model T013 & ATL
Blades have curved cutting edge and thick blade. High temperature blade suitable for long cuts under pressure. ATL Blades are the same as T013 Blades with the exception of being offset at a 45° angle.
| Blades | Thickness | Cutting Edge Length |
| T013-45 | 0.8 mm | 45 mm |
| T013-45SS | 0.8 mm | 45 mm |
| T013-70* | 1.0 mm | 70 mm |
| T013-70-2.0* | 2.0 mm | 70 mm |
| T013-115* | 1.0 mm | 115 mm |
| *For use with the Zetz-24/25 only. | ||
Blade T08
With long pointed blade flanges, ground both sides. For two-directional cuts. For cutting around templates. Also suitable for de-burring.
T012-1-0 for trimming laminated solar panels.
| Blades | Thickness | Cutting Edge Length |
| T08-50 | 0.8 mm | 50 mm |
| T08-75* | 0.8 mm | 75 mm |
| T08-100* | 0.8 mm | 100 mm |
| T08-120* | 0.8 mm | 120 mm |
| *For use with the Zetz-24/25 only. | ||
